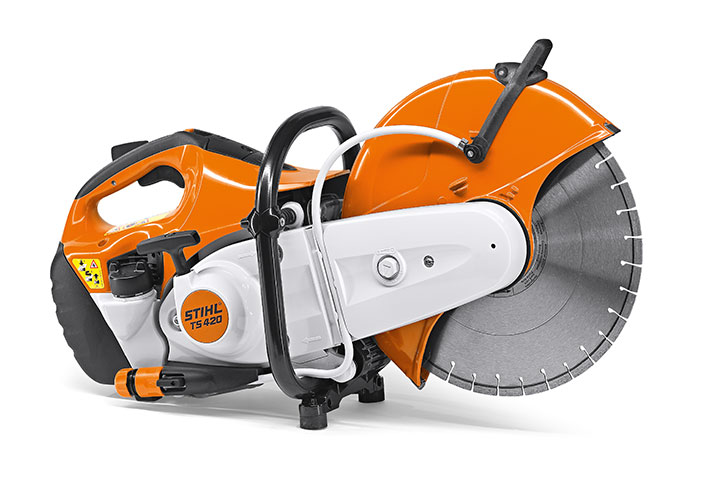

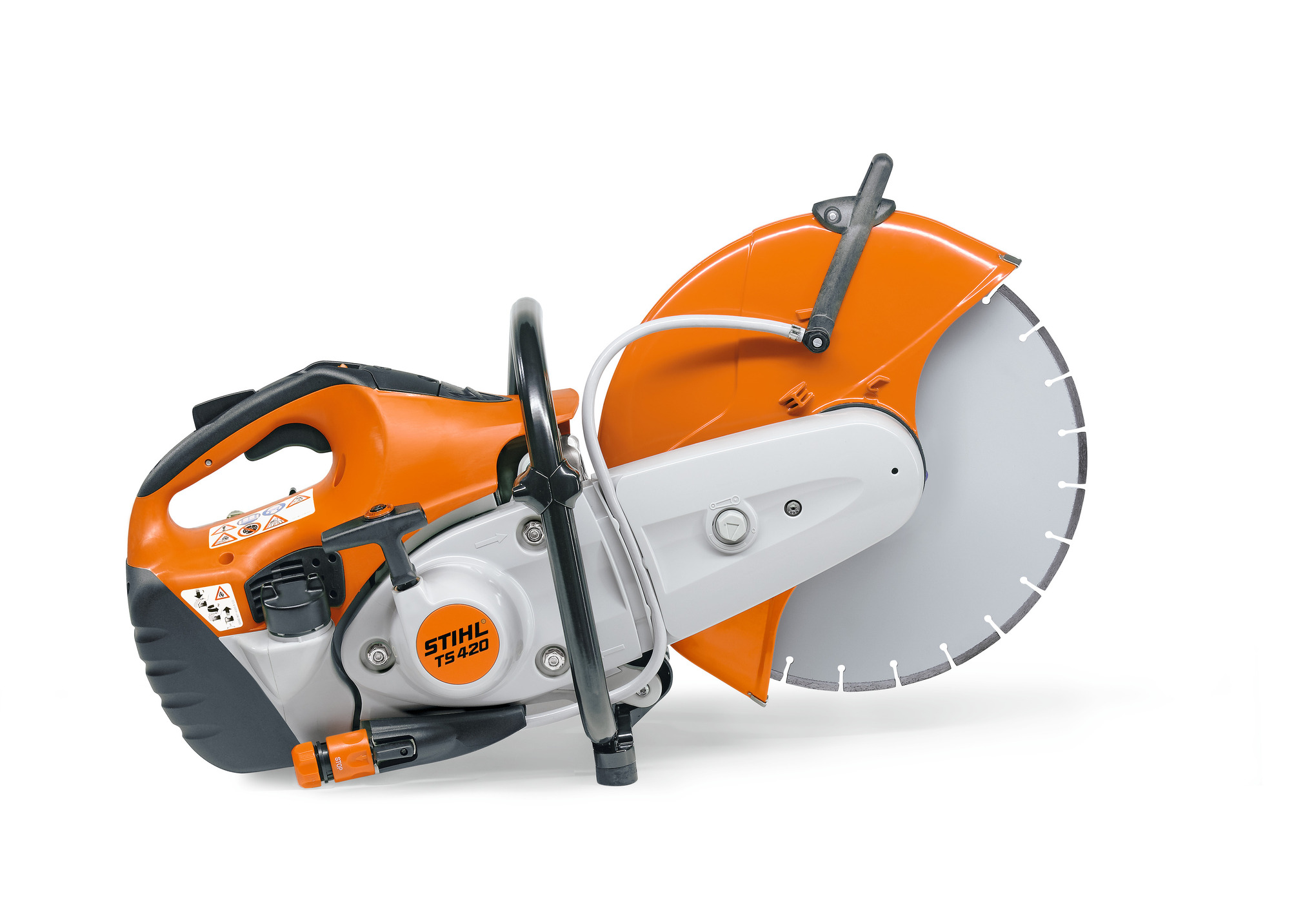

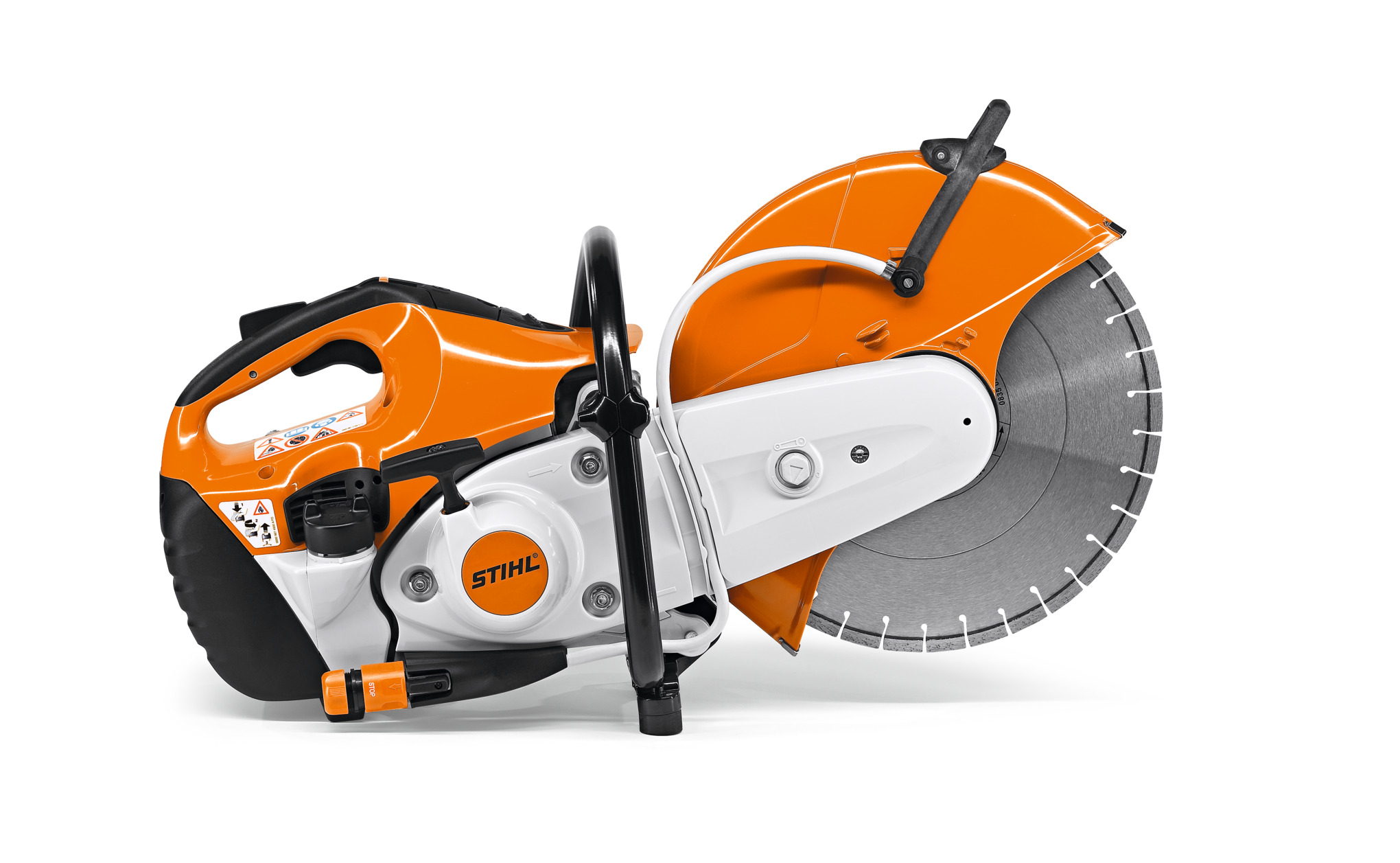

TS 420 Petrol Cut-off Machine

Name: TS 420 Petrol Cut-off Machine
Brand: STIHL

R 19,524.00

All prices include 15% VAT.

Select item

Low-maintenance filter system thanks to cyclone routing

Available to buy from STIHL Approved Dealers

Buy this product at one of our many local stores. Find a store and contact the dealer for information about the availability.

Technical details

Displacement	66,7 cm³
Power	3,2 kW
Weight	9,7 kg
Sound pressure level	98 dB(A) ¹⁾
Sound power level	109 dB(A) ¹⁾

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

STIHL 2-MIX ENGINE

HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.

LONG-LIFE AIR FILTER SYSTEM FOR CUT-OFF MACHINES

ENSURES A LONG FILTER SERVICE LIFE. The long-life air filter system for cut-off machines does not collect coarse dust particles, but uses cyclone air routing to separate them and then discharges them into the ambient air. With just this first step the system removes around 80% of dust particles in the intake air. This enables an extremely long filter service life, and makes the tool easy to maintain.

STIHL ANTI-VIBRATION SYSTEM

FOR MORE PLEASANT WORK. Vibrations can occur when you put your power tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and therefore to your body. The result is that your power tool is more comfortable to hold and your work is much less tiring.

WATER CONNECTION

FOR DUST BINDING AND COOLING. When working with your power tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the power tool, this rinsing is easy and permanently assured.

SEMI-AUTOMATIC STIHL BELT TENSIONING

EXTENDS THE BELT’S SERVICE LIFE. Semi-automatic STIHL belt tensioning makes it easier for you to re-tension the drive belt. All you need is to adjust the adjustment screw with your spark plug wrench. Consistent tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, please refer to the operating instructions of your power tool.

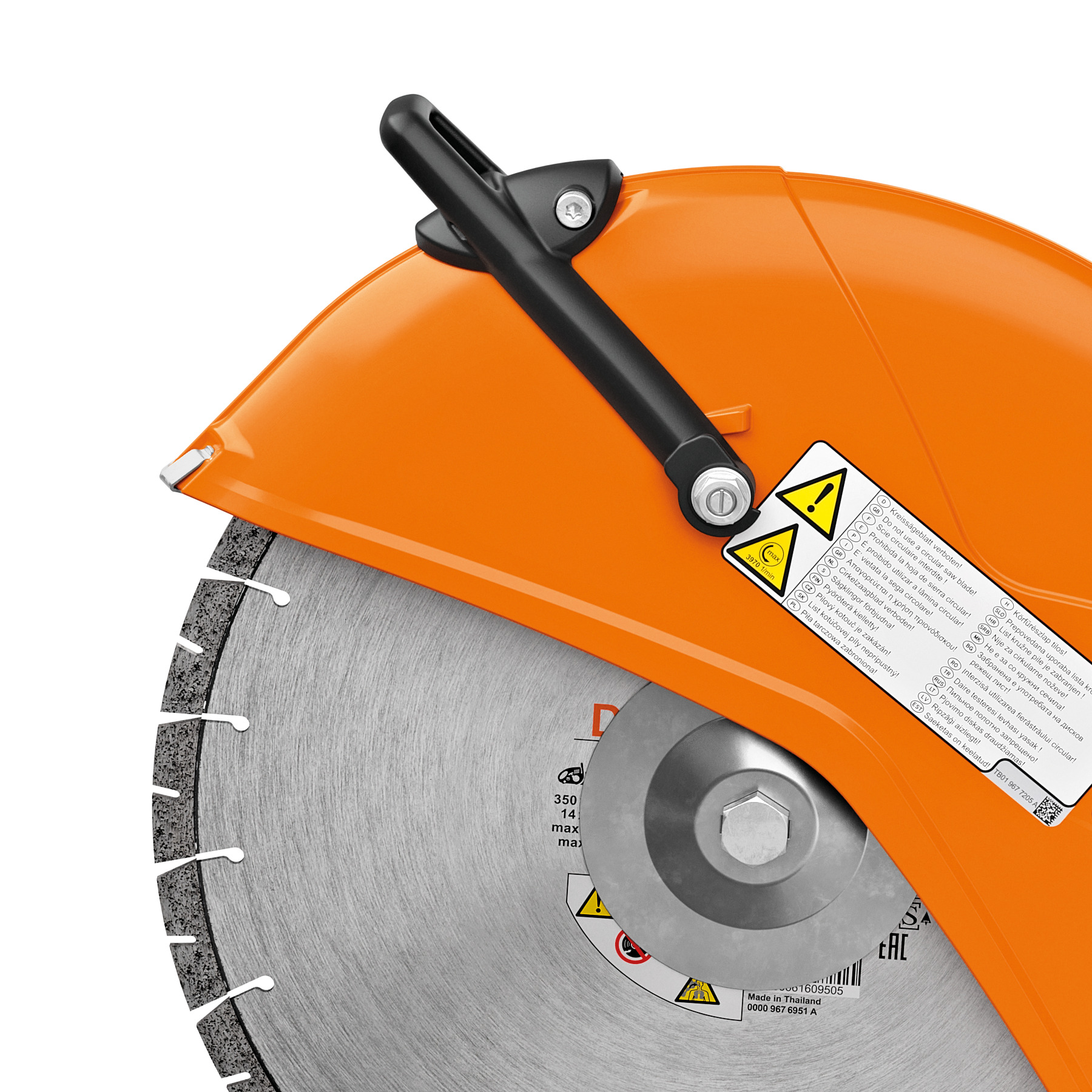

MAGNESIUM GUARD

LIGHTWEIGHT AND STABLE. The cutting wheel guard ensures that you are not hit by flying cut material or cooling water from the cutting wheel. The cast magnesium guard is very lightweight and robust.

COMPENSATOR

REDUCED MAINTENANCE. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.

MANUAL DECOMPRESSION

EFFORTLESS START-UP. The decompression valve makes it easier to start your power tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.

ERGONOMIC HANDLE

FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your power tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.

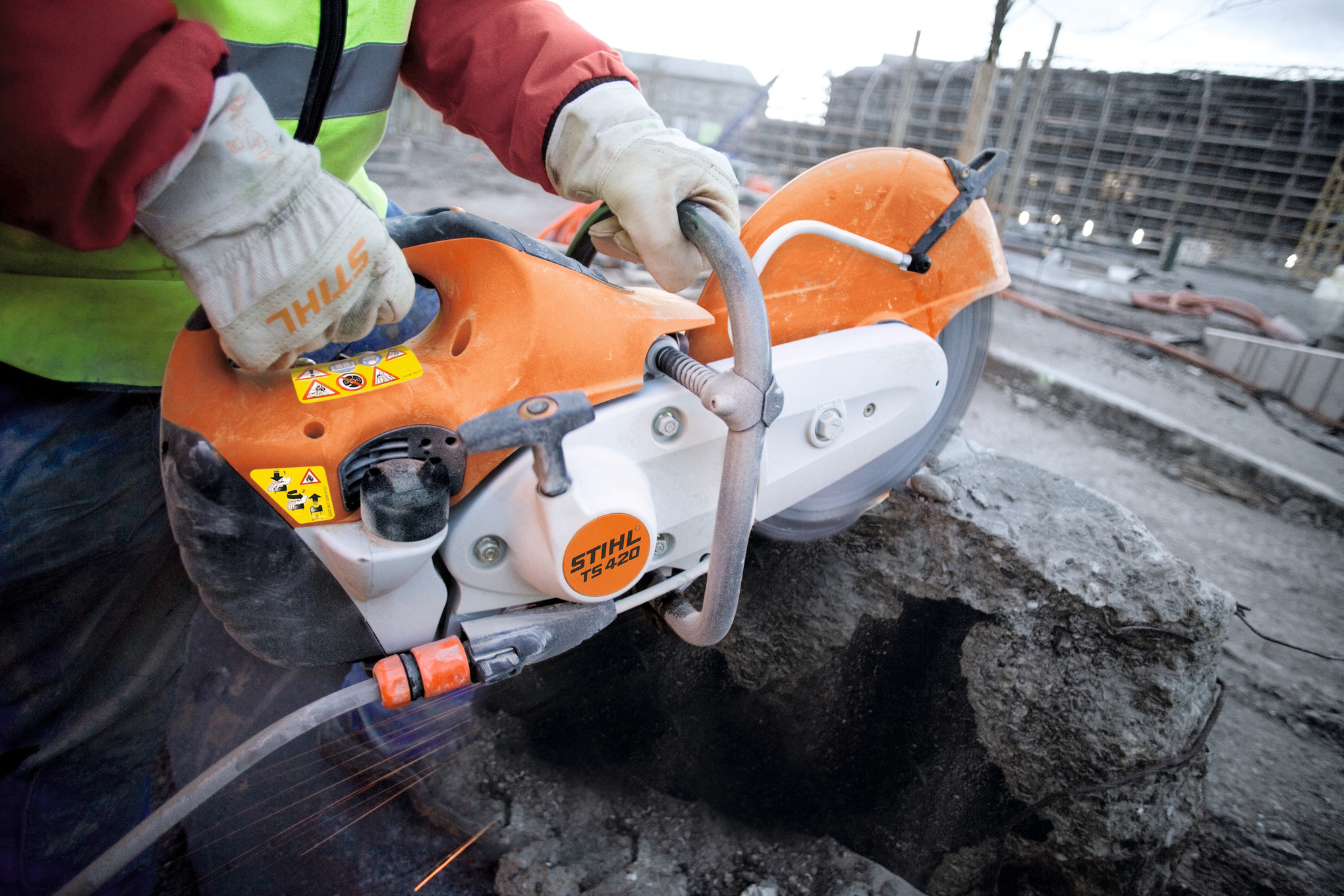

Professional cut-off saw

The TS 420 cut-off saw compact, lightweight, reliable and proves itself day in and day out. The TS 420 features all the high-performance features of the TS 410 including a long-life filter system with cyclone pre-separation for a clean and smooth-running engine and virtually maintenance-free filters. With the added benefit of a 350mm cutting wheel, it will handle cuts up to 125mm in depth. Its compact design and optimised balance enables excellent cutting and guide characteristics. This cut-off machine backs up its larger cutting capacity with a ton of user-friendly features.
